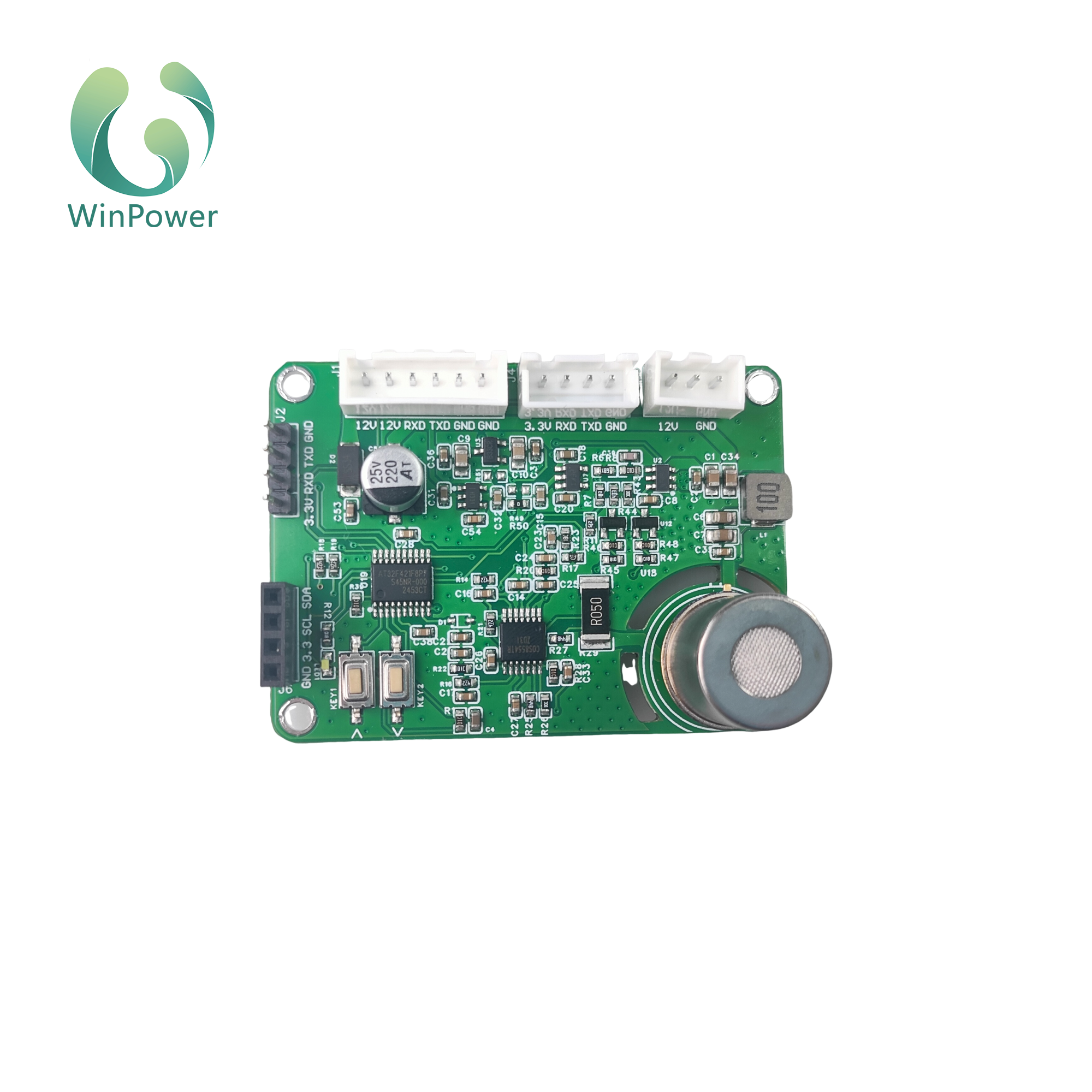

July 24, 2025, Shenzhen — Winpower Technology Co., Ltd. is proud to announce the release of its new-generation Limiting Current Oxygen Sensor Module GSTB-400H V1.2. Designed for high precision, fast response, and robust environmental adaptability, this sensor module provides a reliable solution for oxygen concentration measurement in industrial monitoring, medical equipment, environmental detection, and more.

Key Features

1. High-Precision Measurement

- Detection range: 0.1%–40% oxygen (customizable for other concentrations)

- Resolution: 0.01%, accuracy ±1% FS (@ -40°C to +85°C)

- Built-in temperature, humidity, and pressure compensation for enhanced accuracy.

2. Fast Response & Stability

- Response time (t90) < 5 seconds, warm-up time just 60 seconds.

- Wide operating temperature range (-40°C to +85°C) for harsh environments.

3. Multi-Function Integration

- UART communication interface (3.3V logic) for real-time oxygen, temperature, humidity, and pressure data.

4. Long Lifespan & Low Power Consumption

- Service life ≥ 5 years, typical power consumption 1.6–3.6W (transient ≤5W).

- Diffusion-based sampling, eliminating the need for external pumps.

5. Flexible Calibration & Protocol Support

- Supports single-point calibration (e.g., 20.9% ambient air).

- Hex-format communication protocol for easy integration and development.

Applications

- Industrial Safety: Combustible environment monitoring, exhaust gas analysis.

- Healthcare: Oxygen concentrators, ventilators.

- Environmental Monitoring: Air quality assessment, laboratory equipment.

- IoT Devices: Portable detectors, smart agriculture sensors.

Technical Specifications

- Power Supply: 12V ±0.5V DC

- Dimensions: 58.27mm × 42.11mm × 20.3mm

- Communication: UART (9600bps, no parity)

- Environmental Resistance: Storage temperature -40°C to +100°C.

Customer Support

Winpower Technology offers comprehensive documentation, calibration guidance, and customization services. For inquiries, visit [www.winpower.com.cn](http://www.winpower.com.cn) or contact our support team at +86-755-82415317.

About Winpower Technology

Winpower Technology Co., Ltd. specializes in advanced gas sensor solutions, delivering high-reliability products for global industries. The GSTB-400H V1.2 further expands our portfolio, supporting smarter environmental and industrial applications.

Media Contact

Winpower Technology Marketing Department

Tel: +86-755-82415317

Email: Xenia@winpower.com.cn

---

Editor’s Note: Specifications are based on the GSTB-400H V1.2 datasheet; actual product performance may vary.
