concentration and flow of the PSA oxygen generator. It uses UART digital output, LED lights and other means to send the test results.
OCS-3F 3.1/3.11 is an alternative version of OCS-3F 3.0. The functional parameters are the same.
-
Product introduction
-
Technical parameters
Product description

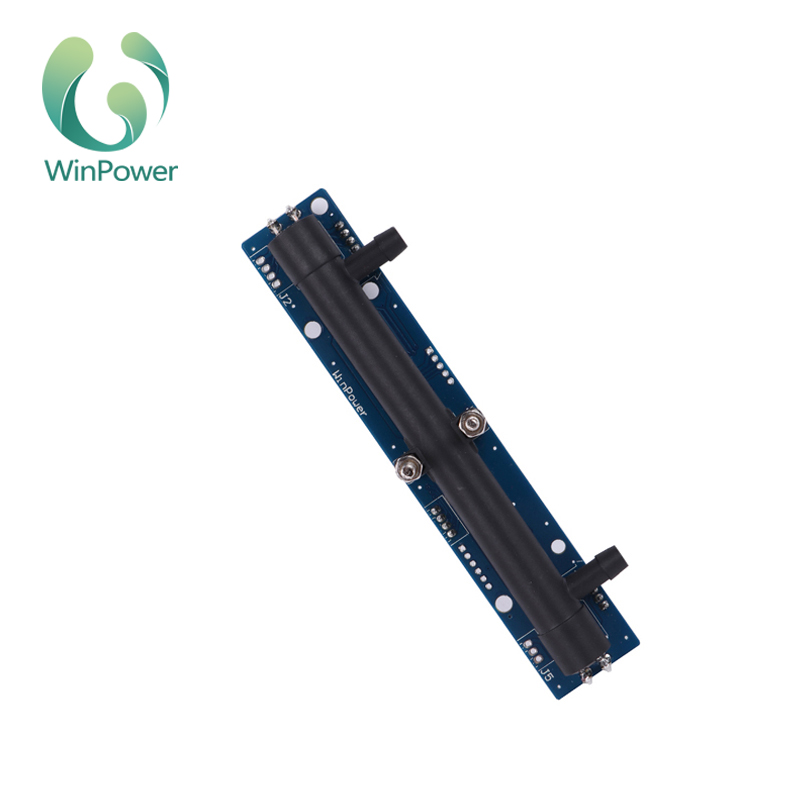

| Product Name | Ultrasonic oxygen sensor OCS-3F3.0 |
| Material | plastic |
| Function | Can detect concentration and flow 21%-95.6% ,0-10L |
| Package | Carton packing.100unit one box,two small boxes are loaded into a large box. |
Features
*Excellent stability, high accuracy, fast response
*5-50 ℃, temperature compensation
*No-consuming parts, long Lifespan
*RoHS certificated
*Lifetime up to 5 years
*Factory calibrated
*Higher accuracy
Dimensions
Usage
In general connections, sensors, wires, LCD and PSU are required.The PSU connects the LCD to the power supply, and the cable connects the LCD to the sensor (J2 port).
Note:When it is connected to the LCD, it can only be plugged into the J2 port, otherwise it will burn out the sensor.
It can detect the oxygen concentration which in the air is 21%-95.6% ,flow which is 0.7LPM and the room temperature
Note:And the burned sensor can only be returned to our factory for repair.
UART communication parameters
Packaging & Shipping
Small box (42*30*24cm) : 20 pieces/layer *5 layers =100PCS
Large box (inside two small boxes, 50*32*44cm) : 100*2=200PCS
Big box net weight: 5KG
Gross weight: 7.2KG
FAQ
Q: Are you a factory or trading company?
A:We are a Professional Manufacturer for ultrasonic oxygen sensors.
Welcome to our company, our company, show room and factory in same place.
Q. Where is your company?
A: 2nd floor, 6# Building, Zone A, Baosheng Industry Zone, No.6 Tangbian Road, Bainikeng Village, Pinghu, Longgang District,
Shenzhen City, Guangdong Province, P.R.China. Welcome to our company.
Q. What is your trading term?
A:1. Payment term: T/T, or PAYPAL for small amount .
2. Lead time: normally in 2-30 days after receiving the payment.
3. Sample policy: Samples are always available for each model. Samples can be ready in 2-5 days once payment received.
4. Shipping: send by EXPRESS
5. Discounts: We offer discount for big quantity.
Q: How to purchase your product?
A:Quotation → PI → Confirm PI → Arrange payment →Producing → Shipping
Q: Can you provide the OEM service?
A: Yes
