Ultrasonic oxygen sensor OCS-3L

The current position:Home>>Products>>Ultrasonic oxygen sensor OCS-3L

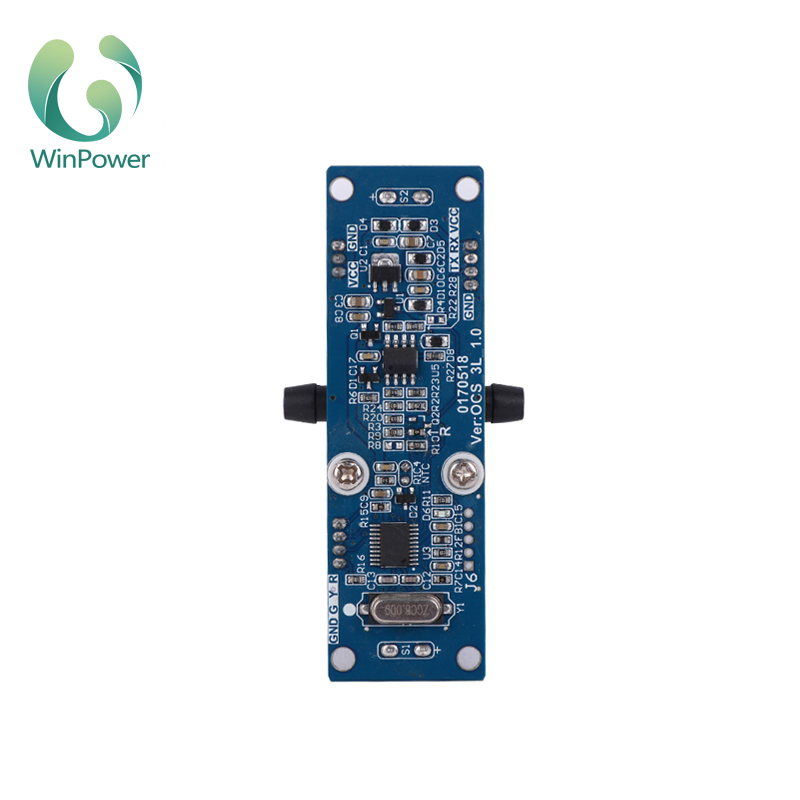

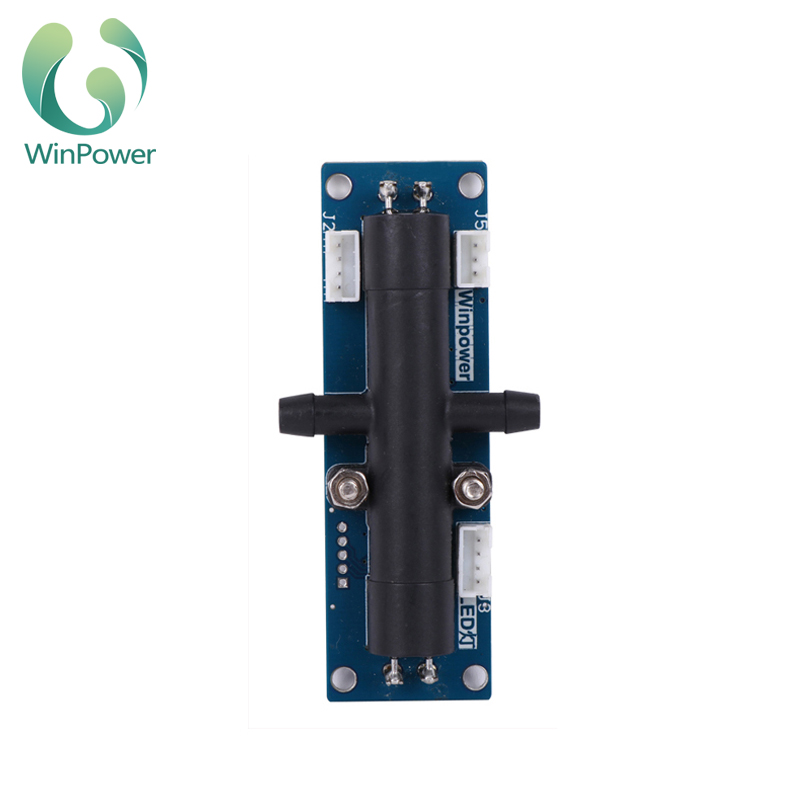

Ultrasonic oxygen sensor OCS-3L

Product Description

OCS-3FL adopting the ultrasonic technology, is an economical oxygen sensor to detect oxygen concentration and gas Volumetric Flow Rate. It has been widely used in home and medical oxygen generator, PSA oxygen generator, medical ventilator,etc.

Share the：

Product introduction
Technical parameters

OCS-3L adopting the ultrasonic technology, is an economical oxygen sensor to detect oxygen concentration . It has been widely used in home and medical oxygen generator, PSA oxygen generator, medical ventilator,etc.

Range of Concentration	21%~95.6%
Resolution	0.1%
Accuracy	± 1.8%FS@(0 ~ 50) ^oC
Response Time	500ms
Warm-up Time	Sensor works as soon as power on;
	10s to within specified accuracy;
Digital Output	9600bps UART
	5V TTL / 3.3V CMOS compatible
LED Output	GREEN：Concentration >82%
	YELOW：82%>Concentration>50%
	RED： 50%> Concentration
	(Settings are adjustable according to customer’s
	requirement)
Direction	Unlimited
Operating Temperature	0~50℃
Operating Humidity	5～85%RH Non condensate water
Maximum Pressure	150 Kpa
Power Supply	DC +6.5-12V /50mA
Dimensions	78mm x 24mm x 24mm (L x W x H)
Weight	19g
